Welcome!
Quick links
Install Tool - allows for pairing locks, managing, and activating properties
For email support: install@nternow.com
For on-demand help from our team: Mon-Fri 10am - 5pm EST by calling 844-531-1283
Pair Hub
Kwikset
Pairing Video: Link (60 seconds)
Overview: PDF
Auto-lock On/Off:
Video: Kwikset 620 AutoLock
Instructions:
Factory Reset Instructions Reset Instructions LINK
Finding the S2/DSK code for pairing
Replacing batteries
Bring small screwdriver and 4 AA batteries
Remove battery cartridge by sliding it up
Replace the batteries in the same orientation
- slide the cartridge back into place noting "Door" symbol for orientation
Detail Pairing instructions below!
- Schlage
- Video: Link (60 seconds)
- Overview: PDF
- Factory Reset: Link
- Auto-Lock On/Off:
- Video:
- Instructions:
- Press the Schlage button on the keypad
- Enter the 6-digit Programming Code provided with the lock
- Press # 9 on the keypad
- Success: 1 Blink + 1 Beep
Replacing batteries
bring Phillips screwdriver and 4 AA batteries
remove the plastic interior cover which may require a screwdriver
disconnect the battery leads and remove the cartridge by sliding it up
replace the 4 batteries, paying attention to the orientation
slide the cartridge back in and
Detail Pairing instructions below!
Yale Locks
- Pairing Video Video
- First manage the hub and select +Add device
- On the Yale lock, press the Yale button
- Enter the programming code followed by "gear"
- Enter the number 7 followed by "gear"
- Enter the number 1 followed by "gear"
- If the Number 1 is not available, you will want to "Exclude"
- Manage the hub and select Exclude Device
- On the Yale lock press the Yale button
- enter the programming code followed by "gear"
- enter the number 7 followed by "gear"
- enter the number 3 followed by gear
- NOW, go back and perform the steps to +Add device

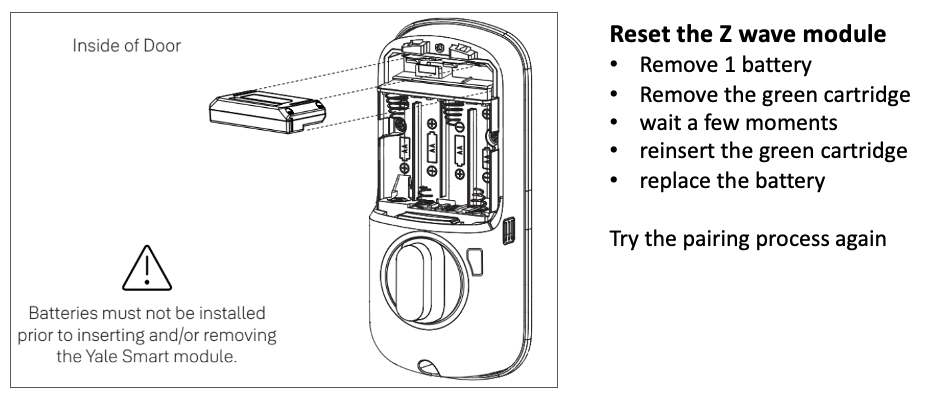

- Reset the Z-wave chip (if the lock still will not pair to the hub)
- Remove 1 battery
- Remove the green Z-wave "Smart Module" cartridge
- Wait 15 seconds
- Insert the green Z-wave "Smart Module" cartridge
- Replace the battery
- Repeat the steps above to +Add device while managing the hub
Install locks
How do I move the hub once a home is sold or leased?
- Overview: PDF
- Description: Login to the NterNow install tool and select Manage, then locate the Sold property's ID and click Unpair to reset the controller. The controller will go offline temporarily with flashing red/yellow lights during the reset process. Once the light turns solid blue, the controller is ready to be activated at your new property and paired with a new Z-Wave lock.
--------------------------------------------------------------------------------------------------------------------
CONNECT YOUR LOCK TO THE HUB
Set your NterNow hub next to an outlet near your front door. The unit is set up to use cellular, so no wifi hookup is needed.

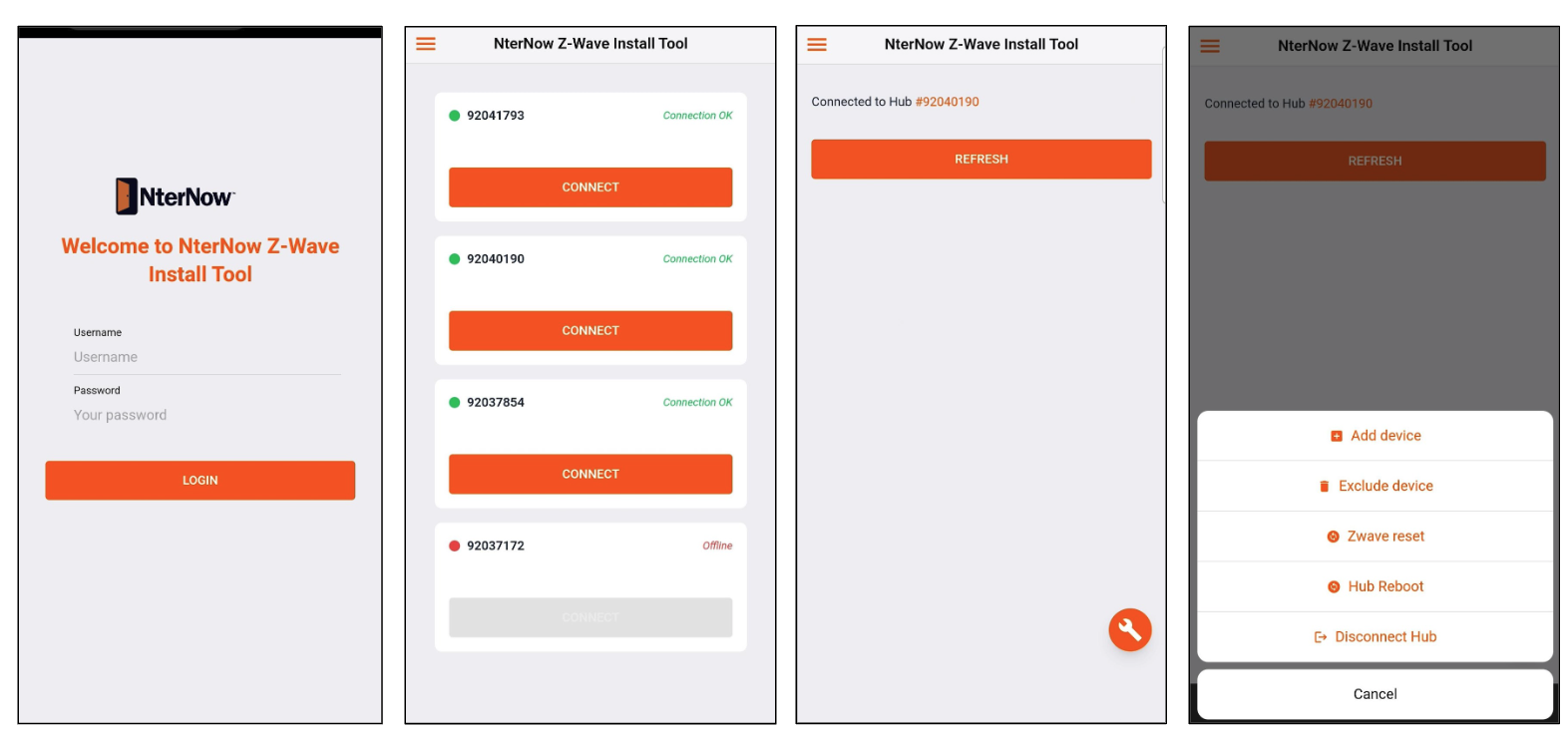

Go to the NterNow Z-Wave Install tool Install Tool and login with your NterNow credentials.
On your NterNow hub, wait for the top LED light to cycle through colors as it comes online. Wait for a steady blue light before proceeding. It may take up to 5 minutes.
In the NterNow z-wave tool, match the hub serial number of your device with the number in the z-wave list and press "Connect"
Tap the orange wrench icon. Then tap "+ Add Device"
At this point, the hub is looking for your lock. Check your lock's pairing instructions to perform the proper sequence to pair.
Kwikset locks - press "A".
Schlage locks - press Schlage button, 6-digit programming key, "0".
Yale locks - Press Yale, enter Installer code then "gear", press "7" then "gear", then "1" then gear.
Some types of locks will require you to enter a code found on lock or paperwork included with the lock.
- Press the required button(s) on your lock to pair to the hub.

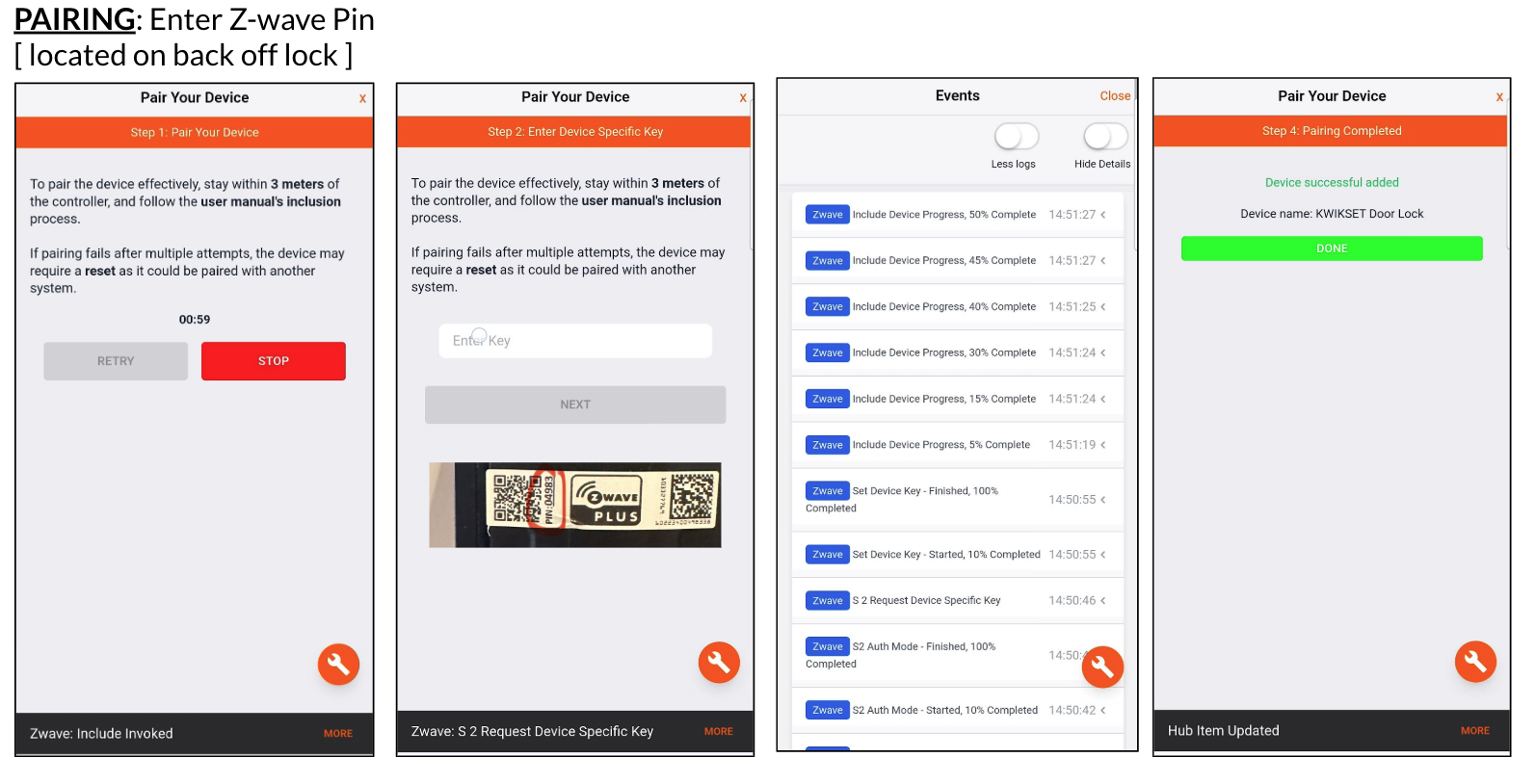

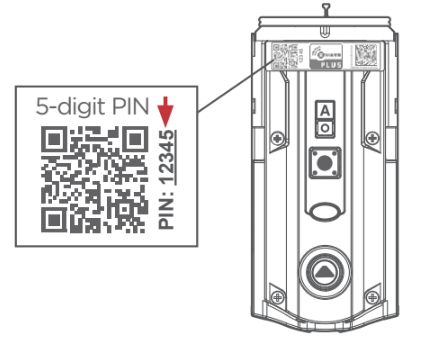

- If your lock has S2 Security, the app will ask for a PIN code to be entered. This is usually found on a sticker near the battery compartment of your lock.
If you click MORE at the bottom, you can see the hub status. Press Close when finished.

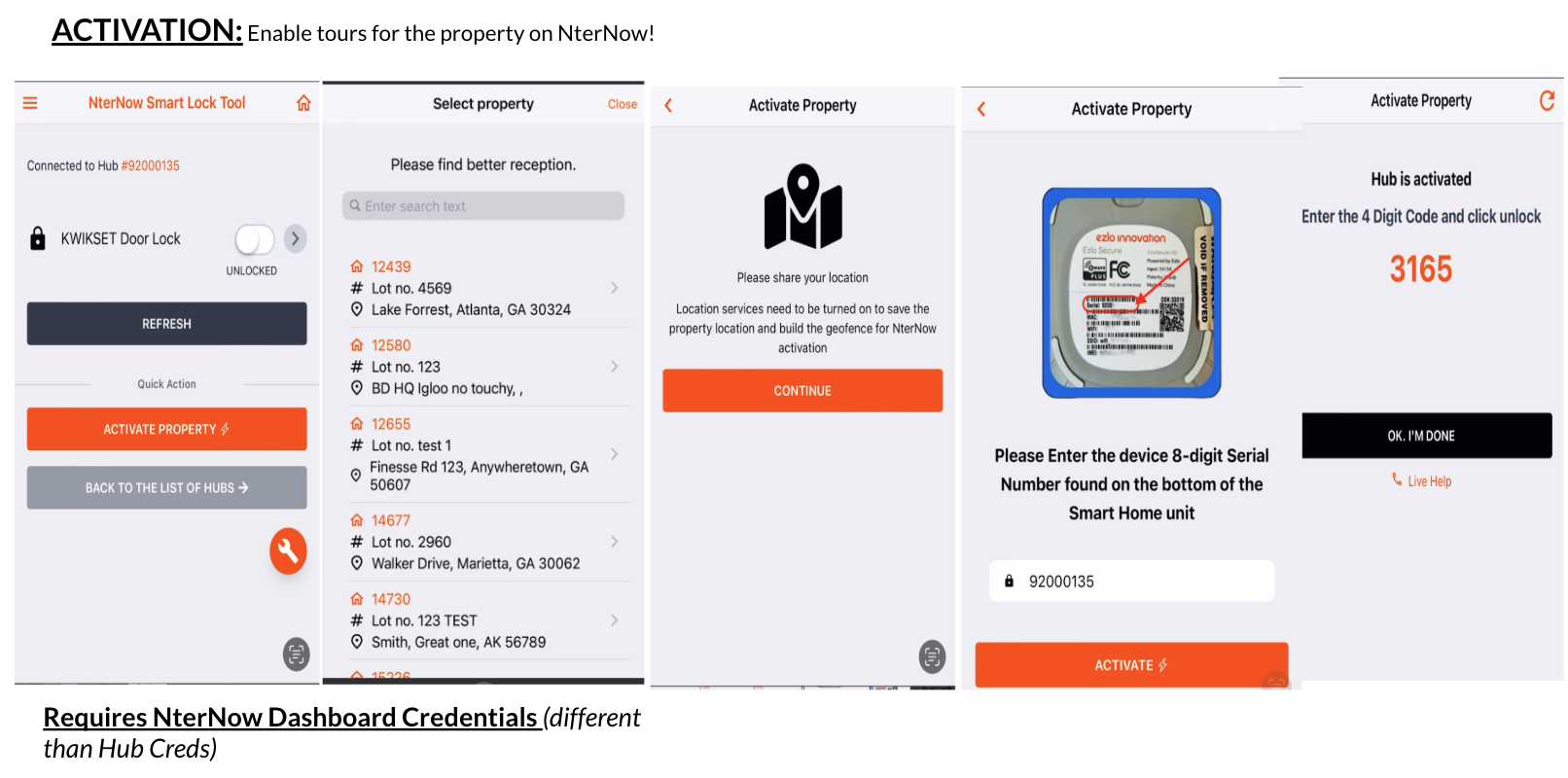

ACTIVATE THE PROPERTY
Once the hub is connected to the lock, click the ACTIVATE PROPERTY button.
- Disclaimer: Make sure the property has been entered into your NterNow dashboard before beginning.
Select your Community from the list of active communities
Select your property from the list of available properties
- Allow Location Permissions on your device. This will allow us to create a geo-fence for secure self-tours
- Enter the hub serial number, found on the bottom of the smart home hub. It should start with 920xxxxx.
- This process will attach your hub to the property, set your coordinates for the address and mark the property "Accessible" to enable self-touring.
- Test the provided code to ensure a good connection.
- Place your door decals on/near the front door and write the Property ID on the sign.
Now your property is ready for Self Guided Tours!
Troubleshooting
Sometimes there may be an issue and the lock will not pair properly. Here are steps to take to clear the hub and lock before trying again.
See our detailed guides here: FAQ
